Integrated Surface Drilling Rig

KT25 Integrated Surface DTH Drill Rig

Dimensions (L*W*H mm)

12100×2900×3850

Weight（kg）

28100

Φ Aperture(mm)

152-203

Drilling Depth(m)

35/36

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KT25 Integrated Surface DTH Drill Rig

Drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes;
It is driven by the Cummins diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system;

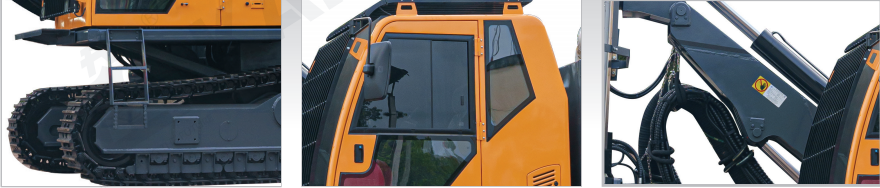

Equipped with the automatic rod handling system, drill pipe floating joint module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, optional drilling angle and depth indication function, etc.
The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
