Hydraulic Mining Drilling Rig

KSJ21 Hydraulic Mining Drilling Rig

Dimensions (L*W*H mm)

6750x1600x2580/3000

Weight（kg）

11000

Φ Aperture(mm)

64-102/64-127

Power（Kw）

24/22/26

Gas Production(m³/min)

0.3

Gradebility(°）

sales hotline

Get a quote

product details

Technical Parameters

KSJ21 Hydraulic Mining Drilling Rig

Used for blast drilling of medium-length hole mining and supporting drilling of anchor cable;Both the applicable height and width of tunnels fall in the range height 2.9m-4m, width 2.8m-4.5m; The support for the drill boom is capable of 360-degree rotation. In combination with swing boom and translational guide rail, it is capable of 360-degreee drilling and parallel drilling.

Economical drilling depth up to 35 meters, optional 27+1 automatic receiving and unloading rod module (drill pipe length 915mm, automatic receiving rod depth 25 meters), to achieve single-person operation.
Heavy-duty aluminum alloy medium and deep hole special propulsion beam, front and rear hydraulic center support, ensure the stability of drilling process. With rod oil cylinder, maximum straightness of borehole is maintained.
The trolley-type workbench with a good sight is adopted; and the wireless remote controller can serve as an option.

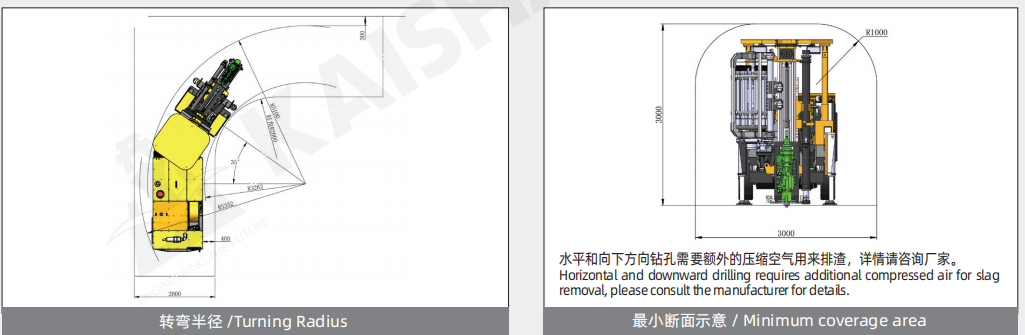

The articulated mining chassis of closed hydraulic drive, The rig is 1.6m wide is suitable for small and medium-sized tunnels.
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of ipacct wave and drilling speed and reduce the consumption of drilling tools and make it in good condition.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
