Hydraulic Mining Drilling Rig

KS311 Hydraulic Mining Drilling Rig

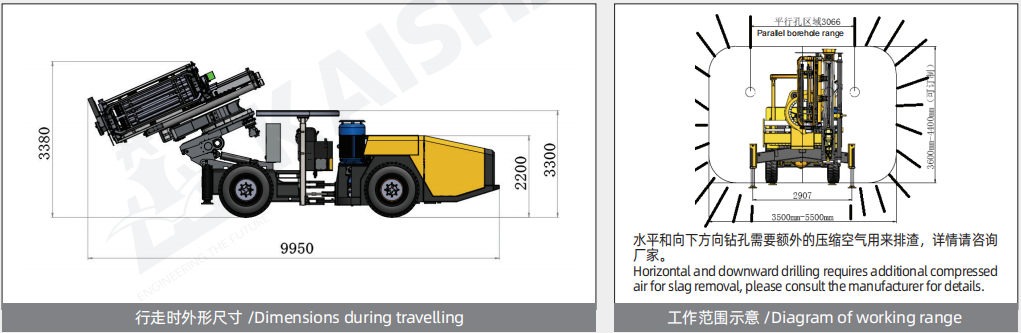

Dimensions (L*W*H mm)

9700x2300x3300

Weight（kg）

16000

Φ Aperture(mm)

64-102/64-127

Power（Kw）

24/22/26

Gas Production(m³/min)

0.3

Gradability(°）

sales hotline

Get a quote

product details

Technical Parameters

KS311 Hydraulic Mining Drilling Rig

Used for blast drilling of medium-length hole mining and supporting drilling of anchor cable.；Both the applicable height and width of tunnels fall in the range of 3.5m-5m; The support for the drill boom is capable of 360° rotation. In combination with swing boom and translational guide rail, it is capable of 360° drilling and parallel drilling within 3m.

The automatic rod-changing system has a storing capacity of 27 drill rods and the drilling depth can reach as far as 42 meters.
The front and rear of the advancing beam are fitted with hydraulic supporting cylinders for smooth drilling. It is fitted with the hydraulic rod oil cylinder and thus ensures the drilling straightness as good as possible.
The trolley-type workbench with a good sight is adopted; and the wireless remote controller can serve as an option.
The articulated mining chassis of closed hydraulic drive is suitable for small and medium-sized tunnels.
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of ipacct wave and drilling speed and reduce the consumption of drilling tools and make it in good condition.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
