Split Surface Drilling rig

KG430/KG430H Surface DTH Drill Rig

Dimensions (L*W*H mm)

6300×2250×2700 6300×2400×2700

Weight（kg）

5250/5700

Φ Aperture(mm)

90-152

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KG430/KG430H Surface DTH Drill Rig

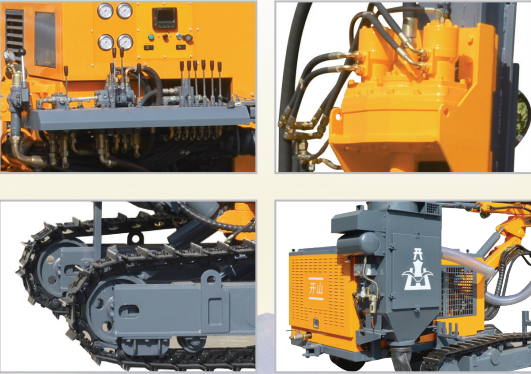

;Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment.
The folding frame track, four-wheel drive are adopted;
Add track leveling and the tramming motor of plunger piston improve the working pressure and climbing capacity;
The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position;
The double rotation motor increases the rotary torque and revolving speed;
The lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability;
The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity;
The additional ring makes handling and lifting convenient.
Equipped with a dust collector, thus making operation more environment-friendly and reliable.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
