Integrated Surface Drilling Rig

KT9D Integrated Surface DTH Drill Rig

Dimensions (L*W*H mm)

8670×2300×3200

Weight（kg）

13000

Φ Aperture(mm)

115-165

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KT9D Integrated Surface DTH Drill Rig

Integrating the down the hole drilling system and screw air compressor system, It is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes.
It is driven by the Yuchai diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system.

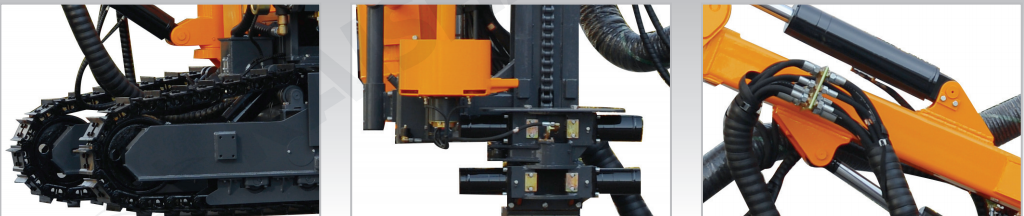

Equipped with the automatic rod handling system, drill pipe lubrication module drill pipe sticking prevention system, hydraulic dry dust collection system, etc.
The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
