Integrated Surface Drilling Rig

KT5D Integrated Surface DTH Drilling Rig

Dimensions (L*W*H mm)

8300×2450×2650

Weight（kg）

9200

Φ Aperture(mm)

90-115

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KT5D Integrated Surface DTH Drilling Rig

Integrating the down the hole drilling system and screw air compressor system, It is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes;
It is driven by the Yuchai engine which simultaneously drives the screw compressor system and hydraulic transmission system;

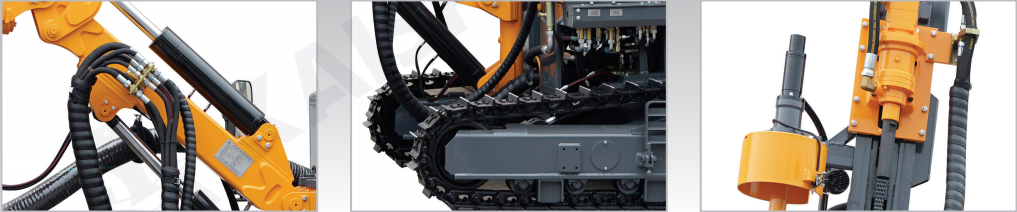

The drill rig is equipped with the automatic rod handling system，drill pipe lubrication moudle and hydraulic dry dust collection system，etc;
It is characterized by excellent integrity，high automation，efficient drilling effect，environment-friendliness,energy conservation，flexibility，simple operation and driving safety．

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
