Split Surface Drilling rig

KZ9 Surface DTH Drill Rig

Dimensions (L*W*H mm)

7550×2550×3100

Weight（kg）

9300

Φ Aperture(mm)

115-165

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KZ9 Surface DTH Drill Rig

Equipped with sunshade canopy,side and rear reversing image,making the operation and movement of the rig safer and more comfortable.

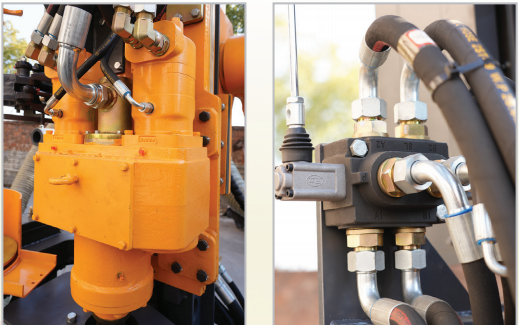

The movement of the drilling rig, including walking, advancing, rotating, dust collection and angle adjustment are all driven hydraulically, providing strong climbing ability and stable performance.
Equipped with a hydraulic dry dust collector to reduce pollution to the environment.
The drilling rig is characterized by its efficient drilling, energy conservation, safety ,environment-friendliness, flexibility and simple operation.
It also features a hydraulic rod unloading mechanism for disassembling the rods, and a rod handling device to reduce labor intensity.
The drilling rig is mainly used for rock drilling work in quarrying projects and open-pit mines.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
