Split Surface Drilling rig

KZ5 Surface DTH Drill Rig

Dimensions (L*W*H mm)

7300×2345×2700

Weight（kg）

7900

Φ Aperture(mm)

90-115

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KZ5 Surface DTH Drill Rig

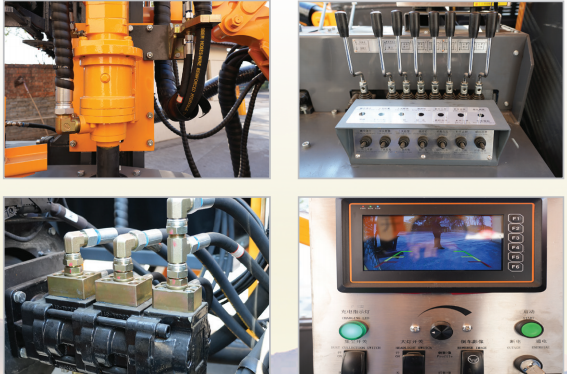

Equipped with sunshade canopy,side and rear reversing image,making the operation and movement of the rig safer and more comfortable;
The movement of the drilling rig, including walking, advancing, rotating, dust collection and angle adjustment are all driven hydraulically, providing strong climbing ability and stable performance;
Equipped with a hydraulic dry dust collector to reduce pollution to the environment.;
The drilling rig is characterized by its efficient drilling, energy conservation, safety ,environment-friendliness, flexibility and simple operation;
It also features a hydraulic rod unloading mechanism for disassembling the rods, and a rod handling device to reduce labor intensity;
The drilling rig is mainly used for rock drilling work in quarrying projects and open-pit mines.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
