Split Surface Drilling rig

KG590/KG590H Surface DTH Drill Rig

Dimensions (L*W*H mm)

7100×2300×2700 7100×2500×2700

Weight（kg）

7200×7500

Φ Aperture(mm)

105-152

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KG590/KG590H Surface DTH Drill Rig

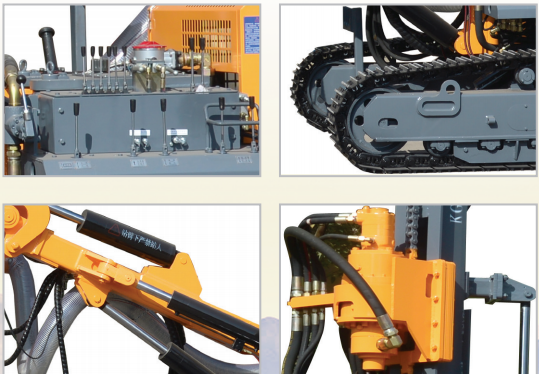

Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and environment;
The folding frame track and four-wheel drive are adopted;
The track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity;
The expanded pitch and lifting-arm hydraulic cylinder enable it to raise the lifting force and reliability;
The rotary torque and revolving speed are raise;
The propulsion motor and chain are used to raise the lifting force and reliability;
The dust collector is enlarged to produce a better effect o dust collection;
The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity;
The additional ring makes handling and lifting convenient;
The KG590H surface DTH drilling rig is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
