Split Surface Drilling rig

KG520/KG520H Surface DTH Drill Rig

Dimensions (L*W*H mm)

6800×2200×2850 6800×2350×2850

Weight（kg）

6500×7000

Φ Aperture(mm)

105-152

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KG520/KG520H Surface DTH Drill Rig

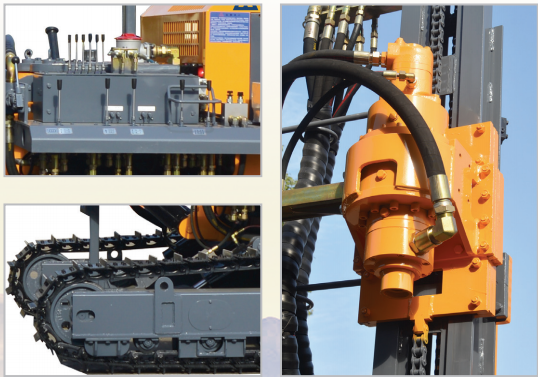

Equipped with the Yuchai four-cylinder engine, the drill rig meets national standards for emissions and enviroment;
The folding frame track and four-wheel drive are adopted;
The track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity;
The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirement of limiting position;
The rotary torque and revolving speed are reised;
The propulsion motor and chain are used to raise the lifting force and reliability;
The dust collector is enlarged to produce a bvetter effect on dust collection;
The thichened profile folder is used for the housing,thus improving its level of intensity and rigidity;
The additional ring makes handling and lifting convenient;
The KG520H surface DTH drilling rig is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
