Split Surface Drilling rig

KG420T/KG420TH Surface DTH Drill Rig

Dimensions (L*W*H mm)

5300×2250×2400 5300×2450×2400

Weight（kg）

5050/5350

Φ Aperture(mm)

90-152

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KG420T/KG420TH Surface DTH Drill Rig

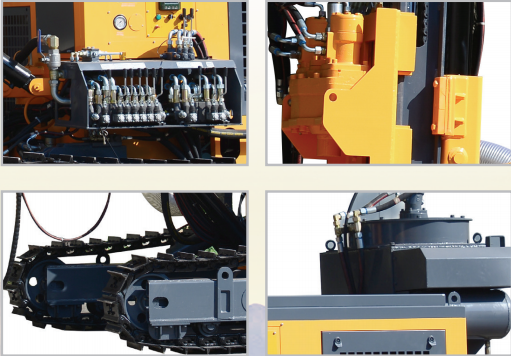

Equipped with the Yuchai four-cylinder engine , the drill rig meets national standards for emissions and environment;
The folding frame track and four-wheel drive are adopted;
Add track leveling cylinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed;
The lifting oil cylinder and chain are expanded to promote the lifting force and reliability.
The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Equipped with a dust collector, thus making operation more environment-friendly and reliable

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
